MICRO DYNAMICS HMI

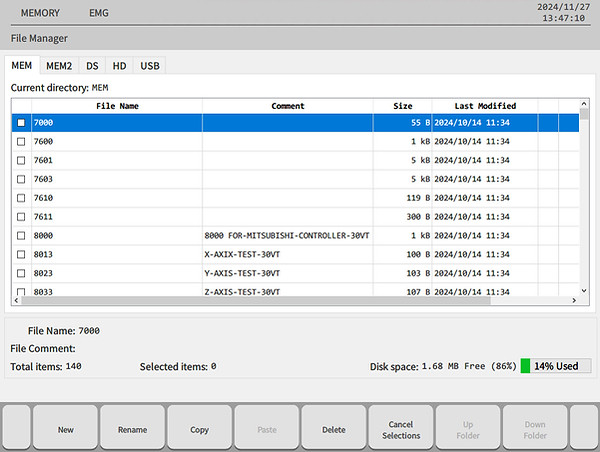

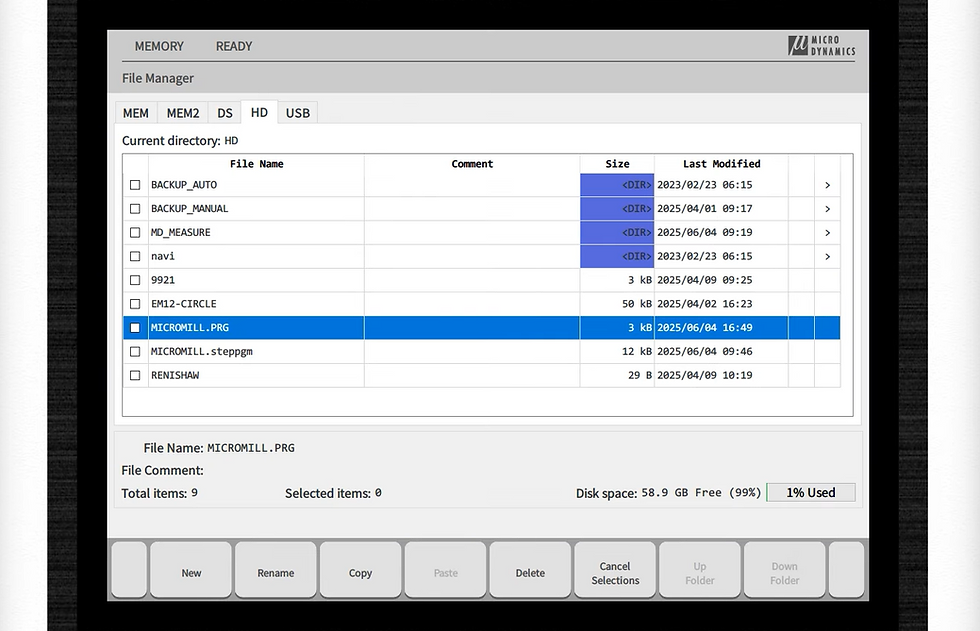

The Windows embedded HMI CNC gives the user the ability to create or add apps to make it flexible to operate and automate the machine. Operator can load, run or edit any program from any device: internal HMI memory, PC hard drive or external USB device.
The MEGA/TERA Series features Mitsubishi CNC M830VW Control which is well suited to high-speed, high-accuracy machining and multi-axis, multi-part system control. Mitsubishi’s tool path graphics verification makes it easier for end users to check G-Code program before machining.
MICRO DYNAMICS CONTROLLER FEATURES
- Mitsubishi CNC M830VW.
- 15” Touchscreen display.
- 5,400 Block Look Ahead.
- 60 GB Data Server.
- 1,000 Programs in editing memory.
- 999 Sets in tool compensation.
- DXF import.
- 54 Sets work offsets.
- 400 Sets tool life management.
- 8,000 Sets macro variable.
- 64 Bit microprocessor.
- 2,048 KB Program memory.
- Main and subprograms can
be edited and run as one file.
- Programs can be run from the
front side USB or the hard drive.
- 3D circular interpolation.
- G-Code guidance.
- Helical interpolation.
- NURBS interpolation. (*)
- Programmable in-position check.
- Scaling.
- Simple programming (NAVI mill
conversational programming).
- 4G SSS Control
(Super Smooth Surface).
- Tolerance control.
- Spiral/conical interpolation.
- Tool Center Point Control.
- 3D tool radius compensation.
- Workpiece position offset for
rotary axis.
- Inverse time feed.
- Polar coordinate command.
- Upgradable to 5 axes
simultaneous control. (*)
(*) Optional for U.S. market only.
COLLISION DETECTION
Machine stops if a collision is detected in all axis.

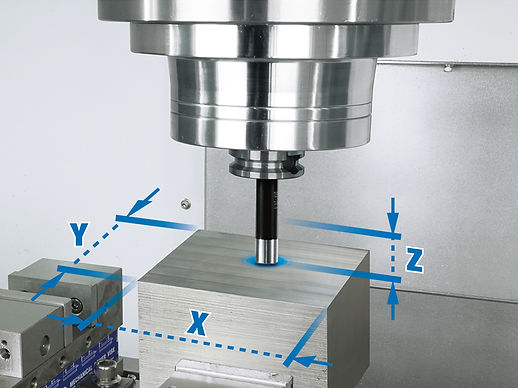

AUTO PART SETUP
X, Y, Z work offset can be achieved with a hard probe.

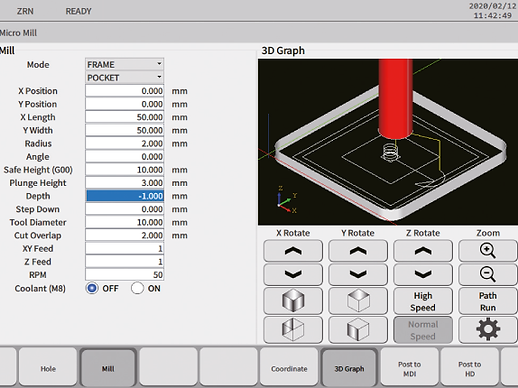

MICRO MILL
MICRO MILL is an interface that allows any operator to easily perform milling and drilling operations while creating G-Code and post to MDI or main memory.

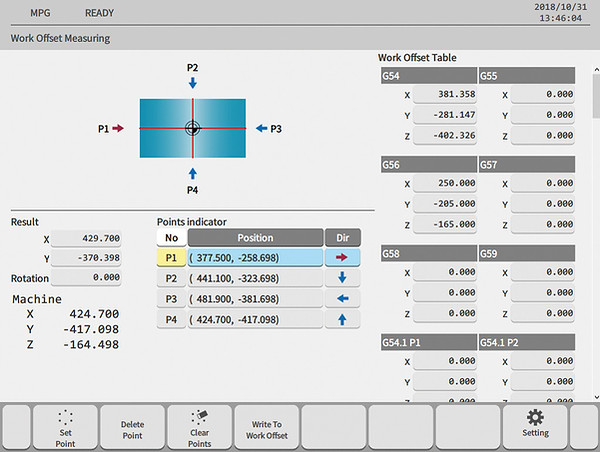

PART SETUP
Using cutting tool to findcoordinate of workpiece (G54...etc). 8 different patterns for various workpiece shapes: Round, Rectangular, Inner or Outer circle.

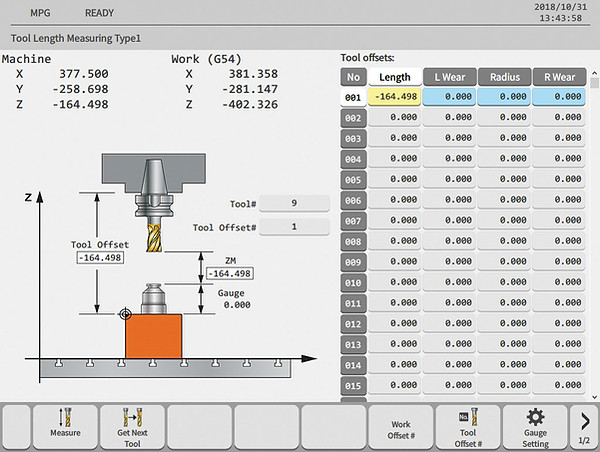

TOOL SETUP
PARAMETER SETUP
Provides a simple and user-friendly method for users to effortlessly configure desired parameters, enhancing work efficiency, and streamlining the tedious setup process.

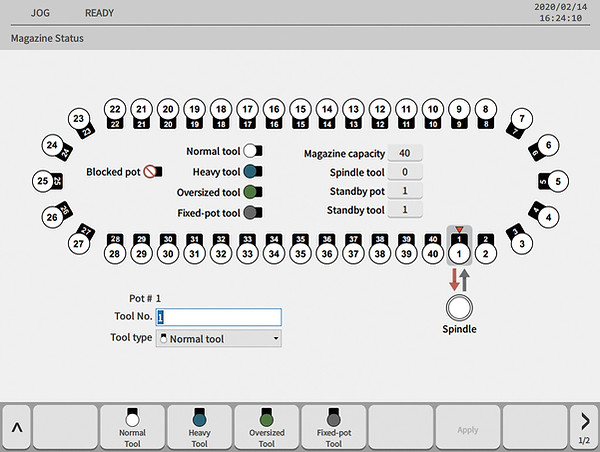

MAGAZINE MONITOR
Monitoring tool magazine situation on the operation panel. Setting for:
- Heavy tool
- Oversized tool
- Fixed-pot tool
ATC RECOVERY
ATC recovery function allows the operator to recover the tool changer.
APC RECOVERY
APC Recovery function allows the operator to recover the pallet changer.

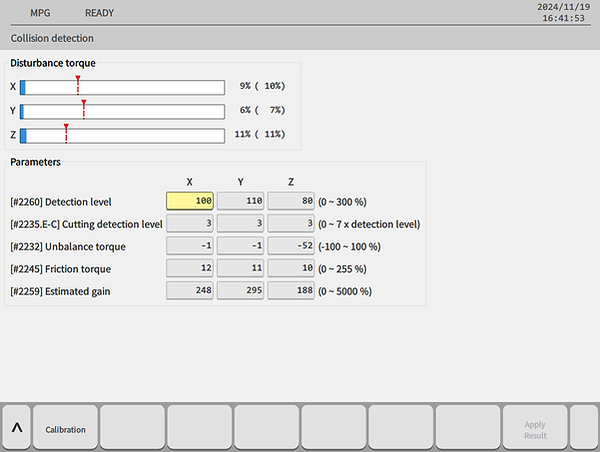

COLLISION DETECTION
Our machine’s self-protection collision detection system ensures you can operate stress-free, without worrying about manual errors affecting operation.

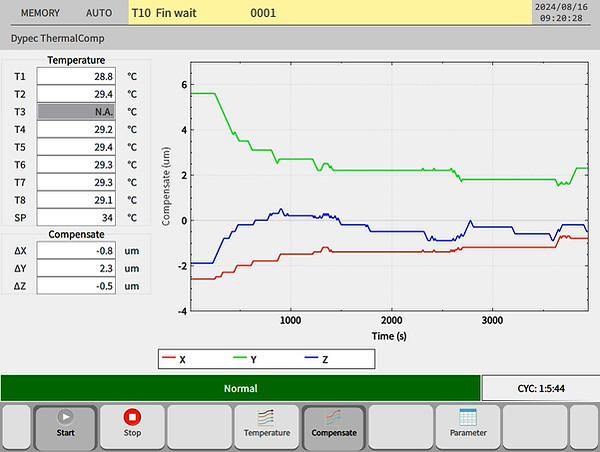

DYPEC THERMAL COMP
Corrects position error caused by thermal changes which improves accuracy and part finishes. (resolution 0.1 µm)

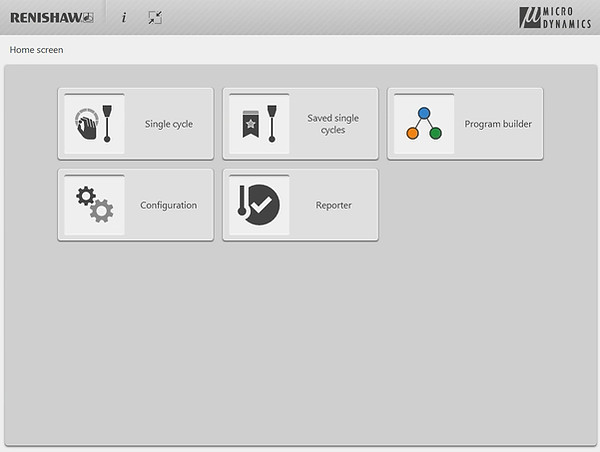

RENISHAW SET AND INSPECT
Preloaded with all RENISHAW software, users only need to purchase and install the required hardware to start using it seamlessly.
